Thread calculator

--------✦ INTRODUCTION ✦------

Thread Calculator is a specialized CNC tool app designed for machinists, engineers, and programmers who need quick, accurate access to thread data and CNC thread cycle generation.

It provides a comprehensive thread database, supporting a wide range of thread standards, along with the ability to create NC codes using formats like G76, G32, G33, G92, and CYCLE97.

--------✦ KEY FEATURES ✦------

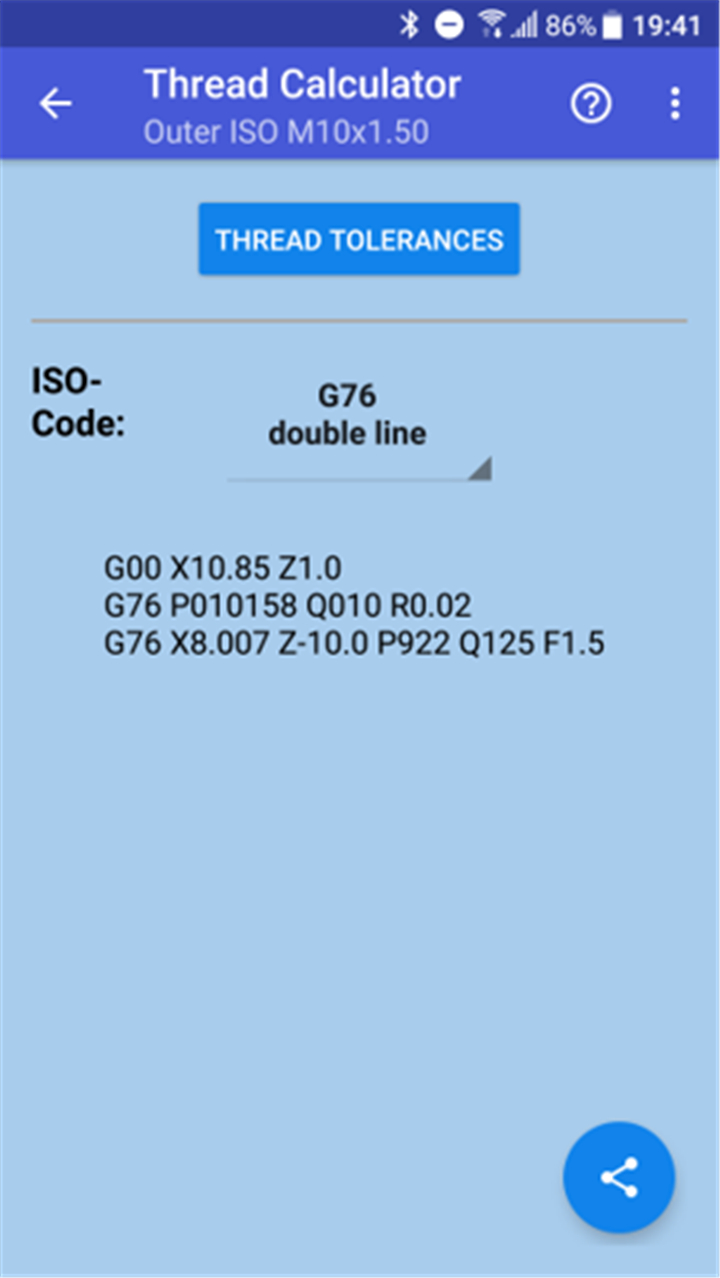

CNC Thread Cycle Generator:

This app allows generating precise NC codes using G76 (single or dual line), G32, G33, G92, and CYCLE97 formats for cylindrical, conical, and multi-start threads.

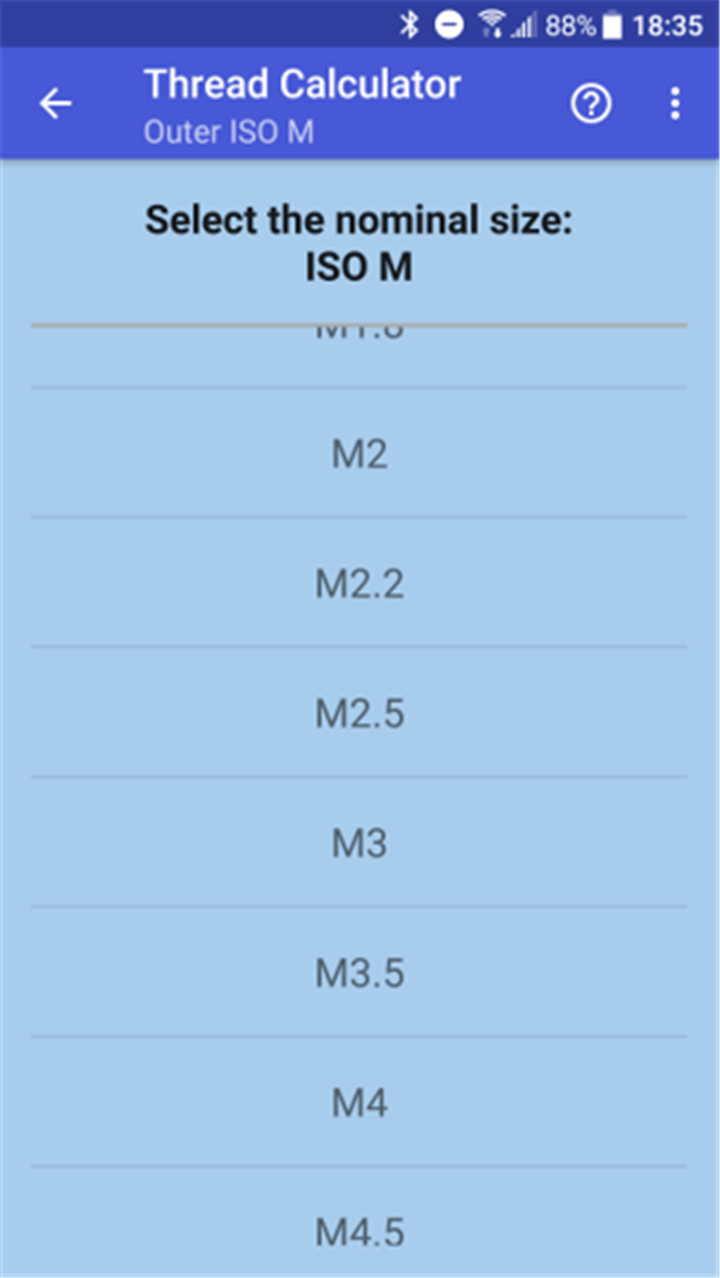

Comprehensive Thread Tables:

Thread Calculator includes full nominal dimensions and tolerance data (min/max) for outer diameter, flank diameter, core diameter, and drill sizes.

Wide Thread Standard Support:

This app allows access to a broad range of thread types including ISO Metric (coarse and fine), ISO MJ, Gas Pipe, Withworth, UNF, UNEF, UNC, UNS, NPT, BSPT, BSF, NPSC, NPSF, NPSM, and more.

Custom Thread Input:

This feature allows manual entry of thread diameter and pitch for custom or non-standard thread setups and generates corresponding thread cycles.

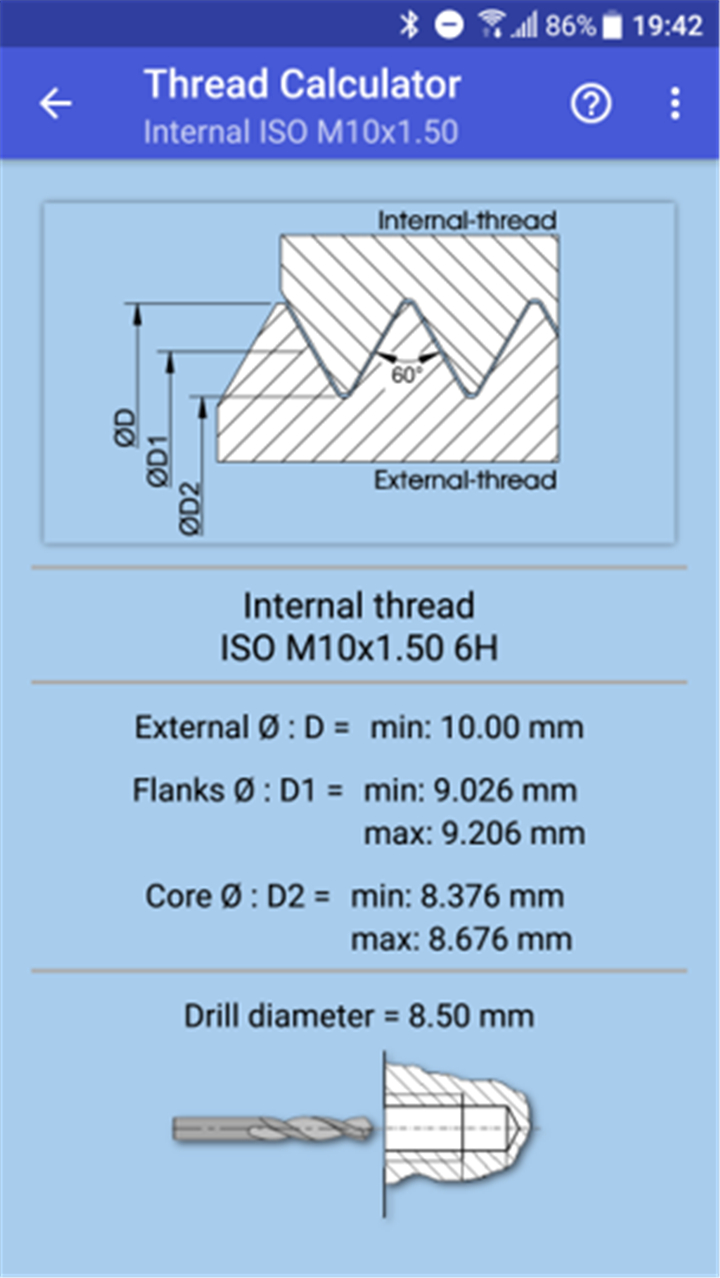

Thread Tolerance Calculation:

Thread Calculator includes detailed tolerance settings such as 6g/6H for metric, 2A/2B for UN standards, and more, useful for both internal and external threads.

Supports Drill Diameter References:

This key feature allows checking drill diameter suggestions for tap threads, helping to prepare correct drilling sizes before threading.

Offline Access:

All features and calculations are available offline, making this app a perfect shop floor companion without relying on internet connection.

--------✦ COUNTRY OF ORIGIN AND LANGUAGE ✦------

Country: Global

Original Language: English

--------✦ RECOMMENDED AUDIENCES ✦------

Thread Calculator is ideal for CNC programmers, machinists, mechanical engineers, technical students, and professionals involved in metalworking and precision manufacturing.

It’s built for users who need quick access to detailed thread specs and NC cycle creation, all from the convenience of a mobile phone.

Frequently Asked Questions (FAQ) :

Q: Which CNC codes does the app support?

A: The app supports NC code generation using G76, G32, G33, G92, and CYCLE97 formats.

Q: Are conical and multi-start threads supported?

A: Yes, you can generate thread cycles for cylindrical, conical, and multi-start threads.

Q: Can I input custom thread dimensions?

A: Yes, the app includes a custom mode where you can enter your own diameter and pitch to calculate thread cycles.

Q: Does it support international thread standards?

A: Yes, including ISO Metric, MJ, UNF, UNC, NPT, BSPT, BSF, and more with their respective tolerance classes.

------------------------------------------

Contact us at the following sites if you encounter any issues:

Official website: here

Email: android@hyperq.com

------------------------------------------

Version History

V3.45----------- 9 Jun 2025

Bug fixes and improvements.
